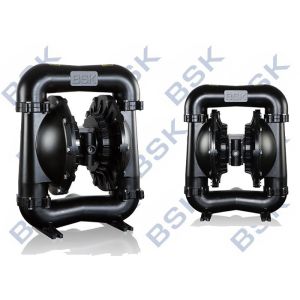

AOOD Pneumatic Air Driven Double Diaphragm Pump For Paint Resin Pigment
Air Driven Double Diaphragm Pump Introduction
This series of Air Driven Double Diaphragm Pump are made of high quality plastics or reinforced polypropylene as the pump body, with good physical properties, with F46 as diaphragm, tetrafluoro as ball, ball seat, suitable for acid, alkali and various organic solvents. Corrosive liquid, high viscosity, high viscosity, volatile, flammable, explosive, highly toxic liquid, ceramic glaze, fruit pulp, glue, oil tanker bottom oil recovery, temporary tank and so on can be exhausted and exhausted, especially to solve the problem of running, risking, dropping, leakage and not allowing empty rotation of the vane pump, which is the most popular in the country at present. A new type of pump, which uses compressed air as a power source, to distribute air through the reciprocating movement of the valve, drives the diaphragm to squeeze the conveying medium by the volume pump, which has the advantages of conveying machinery such as impurity pump, self-priming pump, mud pump, shielding pump, submersible pump and so on.
Air Driven Double Diaphragm Pump Parameters
| Item |
Description |
Unit |
Reference Figure |
| 1 |
Maximum air inlet pressure |
Mpa |
0.83 |
| 2 |
Maximum flow rate |
L/Min |
192 |
| 3 |
Maximum lift |
M |
70 |
| 4 |
Maximum outlet pressure |
Mpa |
0.83 |
| 5 |
Maximum particle size |
mm |
3 |
| 6 |
Weight |
kg |
12.3 |
| 7 |
Noise level |
db |
＜70 |
Air Driven Double Diaphragm Pump Feature
1, no need irrigate water diversion, automatic ability reaches more than 70 meters.
2, passing performances is good, it can pass particles easily with diameter under 3 mm
3, as diaphragm is separated by the transported medium and transmission machinery parts, so the media would never leak outward;no sealing, and greatly extended service life;According to the different media, the diaphragm can be divided into chloroprene rubber, fluorine rubber, nitrile butadiene rubber, ptfe has ene, (F46), etc., it can meet the customers' different requirements.
4,according to different user requirements,the pump body medium flow, can be divided into cast iron, stainless steel, rubber lining, aluminum alloy, the motor can be divided into general motors, explosion-proof motor, motor and reducer, electromagnetic speed regulating motor
Air Driven Double Diaphragm Pump Specifications
1. Non leakage
2. Good self priming performance
3. Convey all kinds of medium
4. Material:Cast steel,Alu,SS,PP
A 2 5 X X - X X X - X (model selection)
Form of pipe mouth:A-BSP B-NPT(F) C-Flange
Diaphragm material:9 – Santoprene H – Hytrel T - PTFE/Santoprene
Ball material:9 -Santoprene H – Hytre T – PTFE A - Acetal
Ball seat material:P/K –Polypropylene/Kynoar SS –Stainless Steel
Pump material: SS –Stainless Steel AL –Aluminum Alloy CI- Carbon Steel P/K –Polypropylene/Kynoar
Maximum Applied Temperature Limits (diaphragm / ball / seal material)
Acetal ···············································40°- 150°F (4.4- 65.5°C)
Santoprene·········································-40°- 225°F (-40°- 107.2°C) ··················································40°- 220°F (4.4°- 104°C) Nitrile··················································10°- 180°F (-12°- 82°C) Viton··················································-40°- 350°F (-40°-176.6°C) Hytrel··················································-20°-150°F (-12°- 93°C) Kynar··················································10°-200°F (-28.9°- 65.5°C) Polypropylene·······································32°- 175°F (0-79.4°C)
